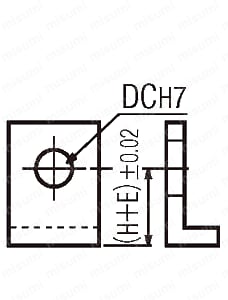

D Hole tolerance change (H7) [DC] (Hole Dia. Configurable)(mm)
[3-100/1mm unidades]
E(mm)
[0-150/0.1mm unidades]
External Dimension A(mm)
[50-300/1mm unidades]
External Dimension B(mm)
[40-150/1mm unidades]
External Dimension L(mm)
[40-200/1mm unidades]
F(mm)
[0-200/0.1mm unidades]
G(mm)
[0-300/0.1mm unidades]
H(mm)
[0-300/0.1mm unidades]
Hole Configurable 1, Counterbored Hole (Back) [ZB]
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Hole Configurable 1, Counterbored Hole (Front) [Z]
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Hole Configurable 1, Screw Through Hole Nominal Dia. Selection [N]
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Hole Configurable 1, Tapped Hole [M](mm)
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
- 16
Hole Configurable 2, Counterbored Hole (Back) [ZBA]
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
Hole Configurable 2, Screw Through Hole Nominal Dia. Selection [NA]
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
Hole Configurable 2, Tapped Hole [MA](mm)
- 0
- 3
- 4
- 5
- 6
- 8
- 10
- 12
K(mm)
[4-80/0.1mm unidades]
Q(mm)
[0-200/0.1mm unidades]
S(mm)
[0-150/0.1mm unidades]
Through Hole Dia. D(mm)
[3-30/0.5mm unidades]
[31-100/1mm unidades]
V(mm)
[0-200/0.1mm unidades]
W(mm)
[0-150/0.1mm unidades]
Y(mm)
[30-290/1mm unidades]
Type
CAD
- 2D
- 3D
Dias de envio estimados
- Tudo
- Dentro de 9 dias úteis
- Dentro de 12 dias úteis

MISUMI

Welded Mounting Plate / Bracket -L-Shaped Type- WAS(Lista de números de peça: página 16)

CatálogoP. 2-1861

Número da peça:

Indefinido. 6,107 candidatos encontrados.

Desenho de contorno e tabela de especificações
Lista de números de peça
Informações detalhadas
Catálogo

Desenho de contorno e tabela de especificações

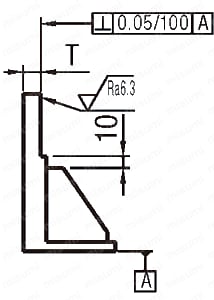

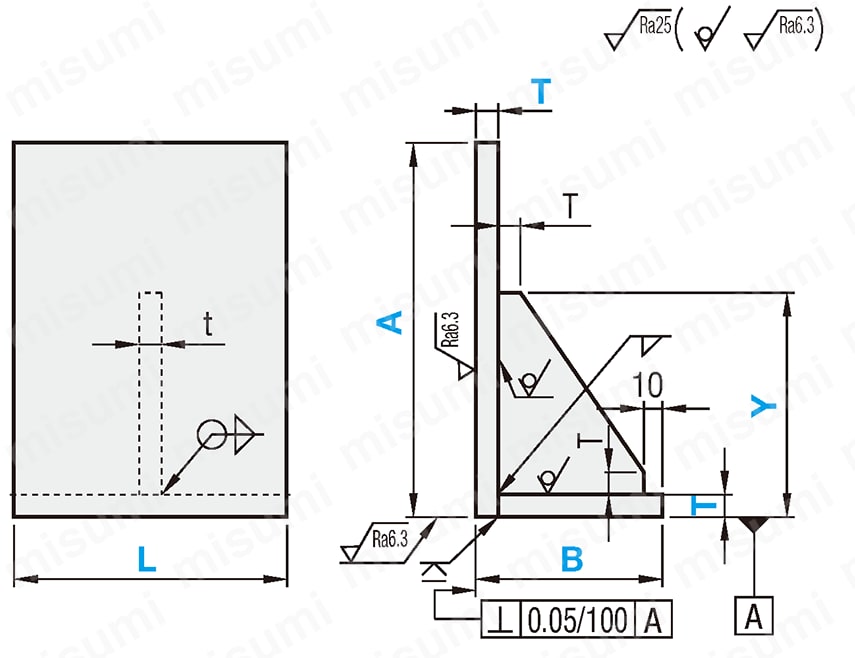

Dimensional Drawing

WAS (Single Gusset Type)

[ ! ] T Dim. Tolerance
T Dim. tolerances for A, B, L dimensions per 100 mm

Material	T Tolerance
EN 1.0038 Equiv.	±0.5/100
EN AW−5052 Equiv.	±0.5/100
EN 1.4301 Equiv.	±0.65/100

[!] Gusset thickness will be as shown in below chart.

T	8·10	14·17	20
t	6	9 (10)	12

Both ends of gusset thickness (t) are (

) and t (10) indicates the gusset thickness for EN AW−5052 Equiv.

[ ! ] Hole pitch dimension tolerance conforms to JIS B 0405 Class m.

[ ! ] C0.2 to C0.5, unless otherwise specified

Mounting Type (Front Machining)	Cylinder Mounting Type (Front Machining)	Motor Mounting Type (Front Machining)
Front Config.B	Front Config.C	Front Config.M


2 Bottom Holes (Single Gusset Type)	4 Bottom Holes (Single Gusset Type)	Slotted Bottom Holes (Single Gusset Type) (Single Gusset Type)
Bottom Config.D	Bottom Config.F	Bottom Config.N

[ ! ] Note for weld bead and hole interferences
[ ! ] Joints are welded.

Weld Bead

Material	Bead Length [f]
EN 1.0038 Equiv.	5 to 10
EN AW−5052 Equiv.	10 to 15
EN 1.4301 Equiv.	5 to 10

■Hole Type Selection Chart

Hole Type

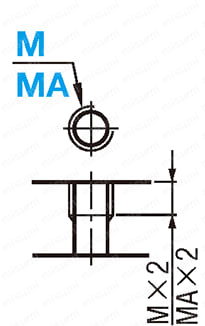

Tapped Hole

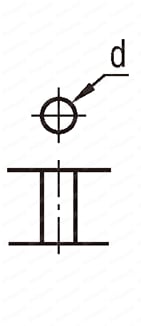

Bolt Hole

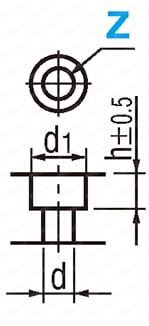

Counterbored Holes

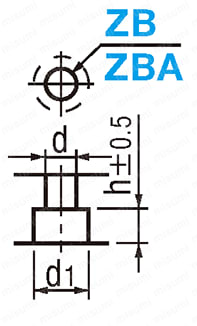

Counterbored Holes (Back)

Code

M·MA

N・NA

ZB·ZBA

Shape Diagram

Machining
Specifications

Effective Tap Length
Max. M, MA × 2

Dimensions	Screw Nominal Size
Dimensions	3	4	5	6	8	10	12	16
d, h	3.5	4.5	5.5	6.5	9	11	14	18
d₁	6.5	8	9.5	11	14	18	20	26

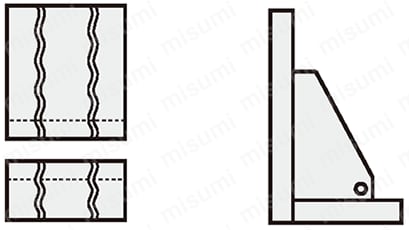

[ ! ] For the Blank Type with no holes, if the material symbol [ABW] or [ABB] is specified, the material may have [plating wire marks] and [plating color variations] as shown on the right.

[ ! ] For the Blank Type with no holes, if the material symbol [SBM] is specified, the material may have [plating wire hanger holes] as shown on the right.
　

* A ø3 hole may be present on (*) area.

Part Number					Material	Surface Treatment
	Type			Material Symbol
Blank Type Single Gusset WAS	2 Bottom Hole Type Single Gusset WASBD WASCD WASMD	4 Bottom Hole Type Single Gusset WASBF WASCF WASMF	Slotted Bottom Holes (Single Gusset Type) WASBN WASCN WASMN	SB	EN 1.0038 Equiv.	—
				SBB		Black Oxide
				SBM		Electroless Nickel Plating
				AB	EN AW−5052 Equiv.	—
				ABW		Anodize (Clear)
				ABB		Anodize (Black)
				SUB	EN 1.4301 Equiv.	—

Shot Blasted

Specification Table

Part Number

—

Hole Specification
Code / Nominal Dia.

—

Hole Specification
Code / Nominal Dia.

—

Type

Front Config.

Bottom Config.

—

Material Symbol

WAS

—

T10

—

A150

—

B60

—

L80

—

Y120

WAS

—

SBB

—

T10

—

A150

—

B60

—

L80

—

Y120

—

H50

—

F50

—

G50

—

V60

—

S20

—

NA6

[ ! ] Please make sure that all are half-size characters.

Part Number

T Selection

External dimensions configurable 1 mm Increments

Hole Specification

Type

Front Config.

Bottom Config.

Material Symbol

Code

Nominal Dia.

Code

Nominal Dia.

Single Gusset
WAS

Mounting Type
B
Cylinder Mounting Type
C
Motor Mounting Type
M

Single Gusset
D (2 Hole Mounting Type)
F (4 Hole Mounting Type)
N (Slotted Hole Mounting Type)

SB
SBB
SBM
AB
ABW
ABB
SUB

(8)
10
14
17
20
(8) Applies to EN 1.0038 Equiv. only

50 to 300

40 to 150

40 to 200

30 to 290
Y > T × 2
When A > 150

Y ≥ A/2

0.1 mm Increments

3 to 30 (0.5 mm Increments)
31 to 100 (1 mm Increments)

M
N

Z

ZB

0
(No Hole)
3
4
5
6
8
10
12
16

0.1 mm Increments

MA
NA

ZBA

0
(No Hole)
3
4
5
6
8
10
12

0.1 mm Increments
K ≤ NA × 5

For the machining dimensions, see Hole Type Selection Chart
[Type Selection Method]
Select Gusset shape. (Single or Double)·····Example shown is with Single Gusset. WAS
Select front hole shape. ·······················Example shows Mounting Type. B
Select bottom mounting hole qty. or hole type. ····Example shows 2 Hole Mounting Type. D

Alteration

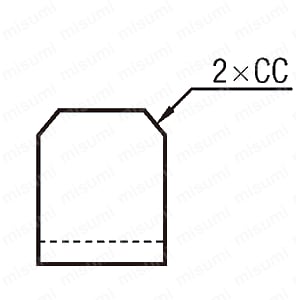

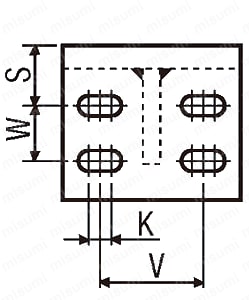

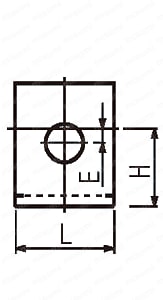

Alterations	Corner Cut Change	Gusset Position Change	Slotted Bottom Hole Angle Change	D hole position change	D Hole tolerance change	Back side milling alteration
Alterations		Single Gusset
Code	CC	RBC	RC	HDC	DC	FC
Spec.	CC = 1 mm Increments [ ! ]3 ≤ CC ≤ 30 Specifying Method Add CC to the end of a Part Number. Example: ... -CC10	RBC = 1 mm Increments [ ! ]2 ≤ RBC ≤ L－2 (Single Gusset Type) [ ! ] RBC ≤ L/2 - t - 2 (Double Gusset Type) Specifying Method Add RBC at the end of the type designation (Example) ... -RBC5	NA slotted hole is rotated 90° about the center. 　 Specifying Method Add RC to the end of a Part Number. (Example) ... -RC	E dimension specification is rotated 180°. 　 Specifying Method Add HDC at the end of the type designation (Example) ... -HDC	Center hole D is changed to a precision hole (H7). DC = 1 mm Increments [ ! ]3 ≤ DC ≤ 100 Specifying Method Specify by replacing dim. D with DC (Example) ... -DC20	Backside is milled. [ ! ] Milling is to end 10 mm away from the gusset. Specifying Method Add FC at the end of the type designation (Example) ... -FC
