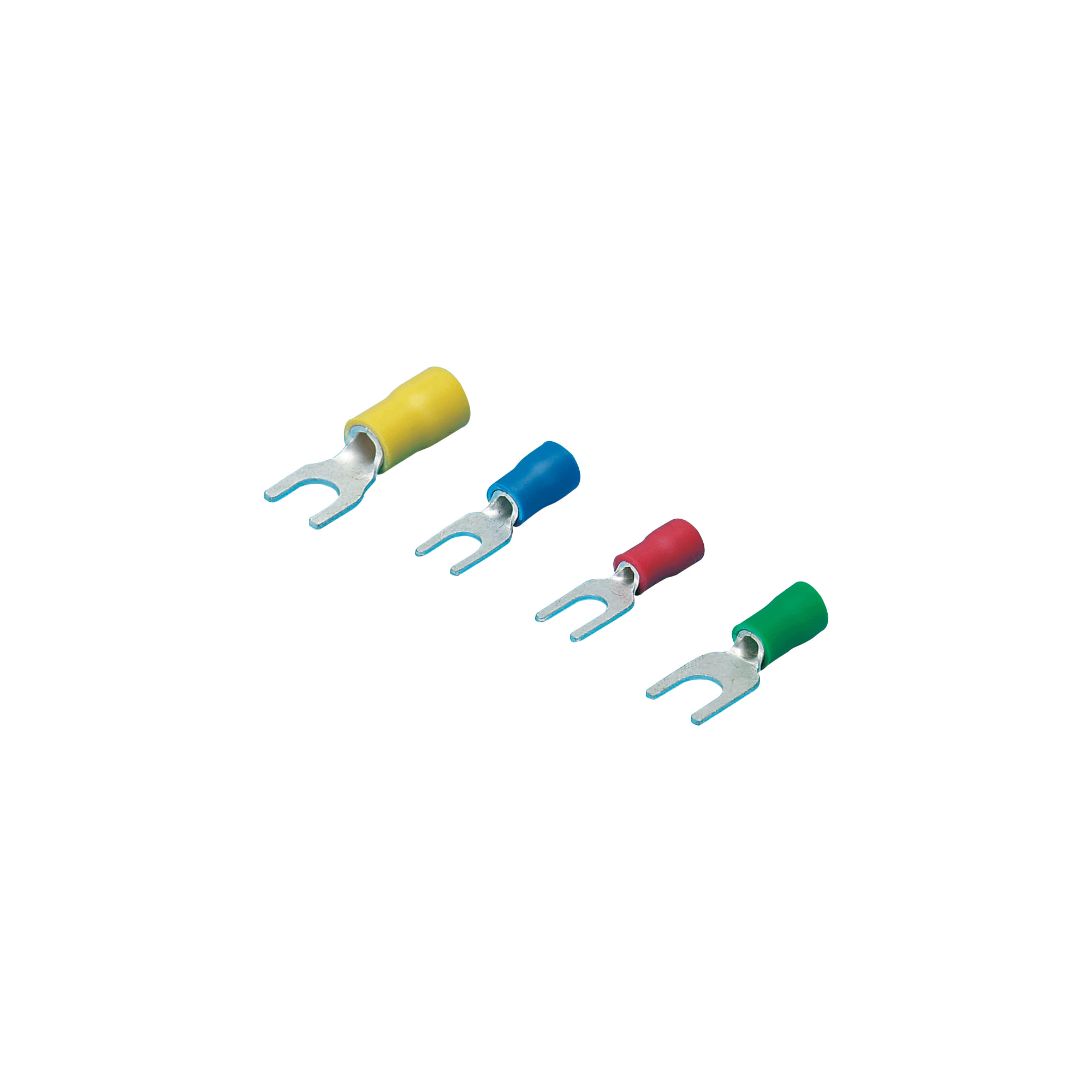

Insulated Crimp Terminal, Y Shape【100 unidades】

Name: Insulated Crimp Terminal, Y Shape from MISUMI | MISUMI
Brand: MISUMI
SKU: 110500058670
Availability: Instock

Passe o rato sobre a imagem para a aumentar

Número da peça:

Indefinido. 21 candidatos encontrados.

Especificações do produto
Lista de números de peça
Informações detalhadas

Especificações do produto

Specifications

Insulated Crimp Terminal, Y Shape:Related Image

1 Pack Unit 100-piece Pack

Model Number	Color	Applicable Electric Wire Range
Model Number	Color	Stranded Wire (mm²)	AWG Size
BVF0.3-3YE	Yellow	0.1 ~ 0.3	26 ~ 24
BVF1.25-3RE	Red	0.5 ~ 1.65	20 ~ 16
BVF1.25-3GR	Green
BVF1.25-3.5RE	Red
BVF1.25-3.5GR	Green
BVF1.25-4RE	Red
BVF1.25-4GR	Green
BVF1.25-5RE	Red
BVF1.25-5GR	Green
BVF2-3.5BU	Blue	1.04 ~ 2.63	16 ~ 14
BVF2-3.5GR	Green
BVF2-4BU	Blue
BVF2-4GR	Green
BVF2-5BU	Blue
BVF2-5GR	Green
BVF5.5-4YE	Yellow	2.63 ~ 6.64	12 ~ 10
BVF5.5-4GR	Green
BVF5.5-5YE	Yellow
BVF5.5-5GR	Green
BVF5.5-6YE	Yellow
BVF5.5-6GR	Green

More Information

Insulated Crimp Terminal, Y Shape:Related Image

External Dimensions Table and Specifications

Model Number	Insulation Material	Rated Voltage (AC)	Withstand Voltage (AC)	Operating Temperature Range	External Dimensions (Unit: mm)								Weight (g)	Compatible Tool
Model Number	Insulation Material	Rated Voltage (AC)	Withstand Voltage (AC)	Operating Temperature Range	A	B	C	D	E	F	G	Sheet Thickness	Weight (g)	Compatible Tool
BVF0.3-3	Hard Vinyl Chloride	300V	3000V	-40°C ~ + 75°C	3.2	5.2	3.2	5.9	9.0	12.5	17.5	0.65	0.372	DS05N
BVF1.25-3					3.2	6.0	4.1	4.4		14.2	18.7	0.8	0.606	NH32
BVF1.25-3.5					3.7	6.0		4.4		14.2	18.7		0.579
BVF1.25-4					4.3	7.0		6.5		16.2	20.7		0.699
BVF1.25-5					5.3	8.0		7.0		16.8	21.3		0.713
BVF2-3.5					3.7	6.5	4.7	6.0		15.8	20.3		0.789
BVF2-4					4.3	6.9		7.2		16.2	20.7		0.824
BVF2-5					5.3	8.5		8.5		17.2	21.7		0.951
BVF5.5-4					4.3	8.5		7.2		18.0	25.2		1.670
BVF5.5-5					5.3	9.0	6.4	8.5	13.5	19.0	26.2	1.0	1.718	NH13
BVF5.5-6					6.4	12.5	6.4	10.5	13.5	23.5	30.7	1.0	2.188	NH13

Lista de números de peça

Número de itens

Número da peça

Encomenda suspensa

Encomenda suspensa

Internal Diameter

(mm)

Outer Diameter

(mm)

Overall Length

(mm)

Conforming wire size

(AWG)

Insulation coating (color)

Representative Standard

Terminal Model Classify

RoHS?

Quantidade mínima de encomenda

3.2	5.2	17.5	26 ~ 24	Yellow	UL	F Model	10	1 conjuntos 100 unidades
3.2	6	18.7	20 ~ 16	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
3.2	6	18.7	20 ~ 16	Red	UL / CSA	F Model	10	1 conjuntos 100 unidades
3.7	6	18.7	20 ~ 16	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
3.7	6	18.7	20 ~ 16	Red	UL / CSA	F Model	10	1 conjuntos 100 unidades
4.3	7	20.7	20 ~ 16	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
4.3	7	20.7	20 ~ 16	Red	UL / CSA	F Model	10	1 conjuntos 100 unidades
5.3	8	21.3	20 ~ 16	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
5.3	8	21.3	20 ~ 16	Red	UL / CSA	F Model	10	1 conjuntos 100 unidades
3.7	6.5	20.3	16 ~ 14	[Blue] Blue	UL / CSA	M Model	10	1 conjuntos 100 unidades
3.7	6.5	20.3	16 ~ 14	Green	UL / CSA	F Model	10	1 conjuntos 100 unidades
4.3	6.9	20.7	16 ~ 14	[Blue] Blue	UL / CSA	M Model	10	1 conjuntos 100 unidades
4.3	6.9	20.7	16 ~ 14	Green	UL / CSA	F Model	10	1 conjuntos 100 unidades
5.3	8.5	21.7	16 ~ 14	[Blue] Blue	UL / CSA	M Model	10	1 conjuntos 100 unidades
5.3	8.5	21.7	16 ~ 14	Green	UL / CSA	F Model	10	1 conjuntos 100 unidades
4.3	8.5	25.2	12 ~ 10	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
4.3	8.5	25.2	12 ~ 10	Yellow	UL / CSA	F Model	10	1 conjuntos 100 unidades
5.3	9	26.2	12 ~ 10	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
5.3	9	26.2	12 ~ 10	Yellow	UL / CSA	F Model	10	1 conjuntos 100 unidades
6.4	12.5	30.7	12 ~ 10	Green	UL / CSA	M Model	10	1 conjuntos 100 unidades
6.4	12.5	30.7	12 ~ 10	Yellow	UL / CSA	F Model	10	1 conjuntos 100 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

13.69 € ( 16.29 € )	5 dias úteis
11.60 € ( 13.80 € )	5 dias úteis
10.85 € ( 12.91 € )	5 dias úteis
11.60 € ( 13.80 € )	5 dias úteis
11.60 € ( 13.80 € )	5 dias úteis
11.60 € ( 13.80 € )	5 dias úteis
11.60 € ( 13.80 € )	5 dias úteis
12.72 € ( 15.14 € )	5 dias úteis
12.72 € ( 15.14 € )	5 dias úteis
12.49 € ( 14.86 € )	5 dias úteis
12.49 € ( 14.86 € )	5 dias úteis
12.49 € ( 14.86 € )	5 dias úteis
12.49 € ( 14.86 € )	5 dias úteis
13.26 € ( 15.78 € )	5 dias úteis
13.26 € ( 15.78 € )	5 dias úteis
23.56 € ( 28.04 € )	5 dias úteis
20.93 € ( 24.91 € )	5 dias úteis
23.56 € ( 28.04 € )	5 dias úteis
23.56 € ( 28.04 € )	5 dias úteis
24.41 € ( 29.05 € )	5 dias úteis
27.72 € ( 32.99 € )	5 dias úteis

Informações básicas

Y-model crimp terminal with insulation made by Japanese manufacturers complying with various standards. 1 pack contains 100 pieces

● Most commonly used Y-model crimp terminals with insulation.
● UL (E74917), CSA (LR66230) acquired high quality crimp terminals. (RVF 0.3-3 has UL certification only)

· Perform crimping with the dedicated crimping tools.
· This product is not waterproof. Avoid using it in places exposed to water.
· Available from 1 pack (100 pieces).
· This product is manufactured by Daido Solderless Terminal MFG, and stocked and sold with MISUMI model numbers.
· Estimation for colors and sizes not in the catalog are available using manufacturer model numbers. Refer to the e-Catalog for details.

Especificações comuns

Features

● Crimp terminals are wire connection components that are used in a wide range of applications such as electrical engineering as well as domestic electrical appliances, measuring devices, FA control devices etc.
● Available in 2 types: conventional type bare crimp terminals without insulation sheathing, and crimp terminals with insulation sleeves.
● We also offer products with JIS, UL and CSA certification, allowing for use with peace of mind.

Allowable Current

Wire Size Used			Terminal Nominal Number	Allowable current or less (at 30°C)
Single Wire	Stranded Wire	AWG		With rubber vinyl insulated wire		Cord
Single Wire	Stranded Wire	AWG		Single Wire	Stranded Wire	Cord
-	0.08	28	0.08	-	-	-
-	0.3	26, 24	0.3	-	-	-
0.8	0.3, 0.5	22, 20	0.5	-	-	-
1.0, 1.2	0.75, 0.9, 1.25	18, 16	1.25	16 A, 19 A	16 A, 17 A, 19 A	7 A (0.75 mm), 12 A
1.6	2	14	2	27 A	27 A	17 A
2.0	3.5	12	3.5	35 A	37 A	23 A
2.6	5.5	10	5.5	48 A	48 A	35 A
3.2	8	8	8	62 A	62 A	-

Allowable Voltage

Bare Crimp Terminal: 600 VAC or less
Insulated Crimp Terminal: 300 VAC or less

Materials

Conductor Component: Oxygen-free Copper (Tin-Plated)
Insulator Component: Refer to product pages

Compatible Wire Size

Refer to product pages.

Crimping Method

Diagram A

Terminal Nominal (Note 3)	Wire Size Used			Wire Sheath Strip Dimensions (mm)
Terminal Nominal (Note 3)	Stranded Wire (mm²)	Single Wire (Dia. mm)	Wire Conjugation Capacity (Note 1)	L (Note 2)	L1	L2
0.08	0.08	-	-	B + L1 + L2	0.5 ~ 2	0 ~ 1
1.25	0.3, 0.5, 0.75, 0.9, 1.25	0.75 ~ 1.44	0.25 ~ 1.65	B + L1 + L2	0.5 ~ 2	0 ~ 1
2	1.25, 2.0	1.14 ~ 1.82	1.04 ~ 2.63	B + L1 + L2	0.5 ~ 2	0 ~ 1
5.5	3.5, 5.5	1.82 ~ 2.89	2.63 ~ 6.64	B + L1 + L2	0.5 ~ 2	0 ~ 1
8	8	2.89 ~ 3.65	6.64 ~ 10.52	B + L1 + L2	1 ~ 2	0 ~ 2

(Note 1) When 2 or more wires are inserted into terminals for crimping, ensure that the combined total of the wires' cross-sectional area is within the wire conjugation capacity range and is also similar to the terminal nominal.
(Note 2) The calculation method of the L dimension is simply for finding the dimensions of the wire sheath stripping, and is not used to indicate the shape or dimensions after crimping.
(Note 3) For applicable wires at 0.3, use a conductor cross-sectional area close to the terminal nominal. Furthermore, fold back the core wire when crimping thin types such as AWG28.
Also, ensure that the wire stripping dimension complies with the terminal nominal 1.25.

Crimping Guideline

Selection of Crimping Tool

Visual Inspection after Crimping
