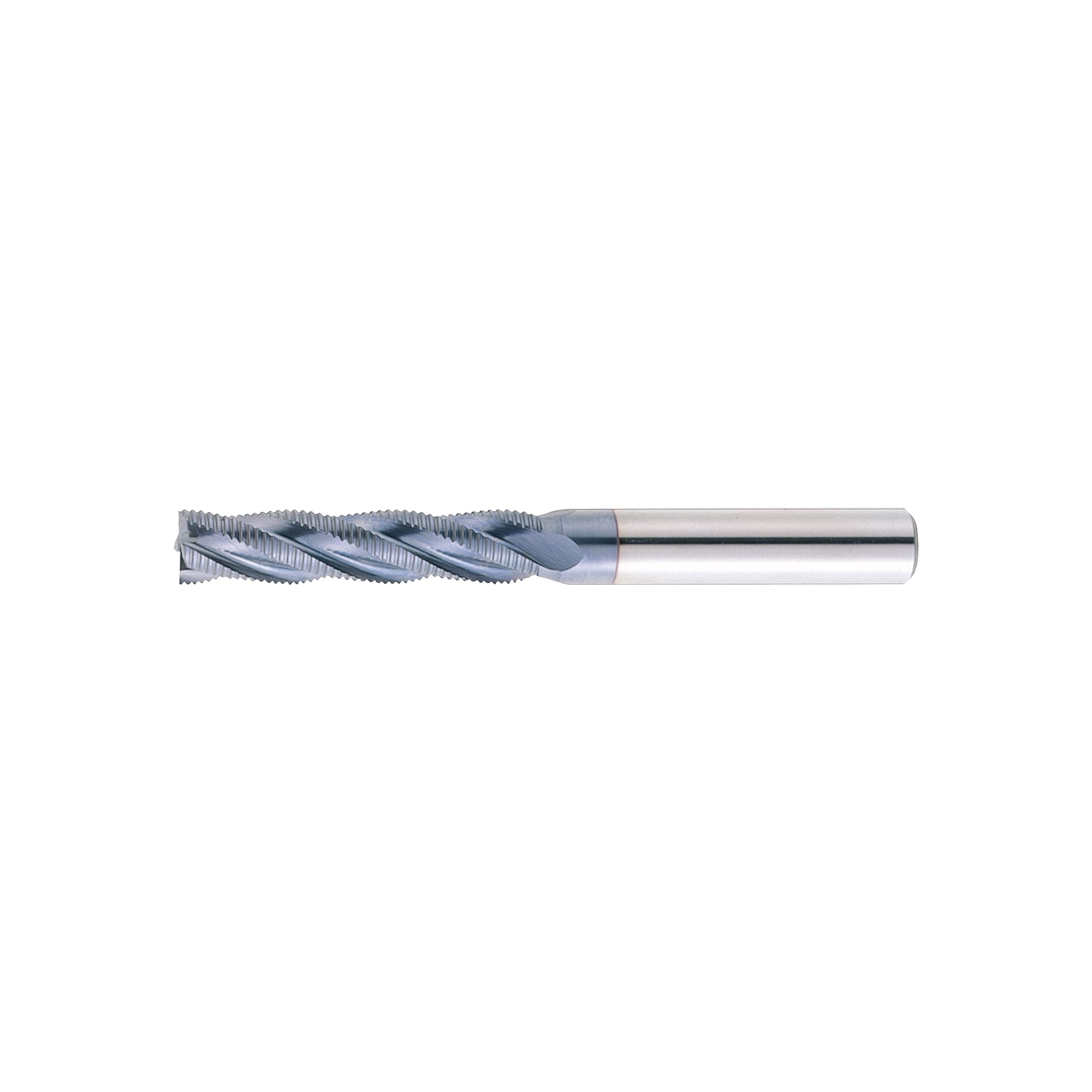

TiCN Coated Powdered High-Speed Steel Roughing End Mill, Long, Center Cut

TiCN Coated Powdered High-Speed Steel Roughing End Mill, Long, Center Cut

Passe o rato sobre a imagem para a aumentar

Número da peça:

Indefinido. 8 candidatos encontrados.
Quantidade:

Desenho de contorno

TiCN Coated Powdered High-Speed Steel Roughing End Mill, Long, Center Cut:Related Image

Lista de números de peça

Número de itens
  • 1
    • Número da peça
    VPM-RFPL10
    VPM-RFPL12
    VPM-RFPL15
    VPM-RFPL16
    VPM-RFPL18
    VPM-RFPL20
    VPM-RFPL25
    VPM-RFPL30

    Outer Diameter (D)

    (φ)

    Flute Length (ℓ)

    (mm)

    Number of Flutes

    (sheet)

    Processing Applications

    Shank Diameter (d)

    (mm)

    Overall Length (L)

    (mm)

    Corner Chamfering C

    (mm)

    Tolerance

    (mm)

    		Quantidade mínima de encomenda
    10
    45
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    10
    95
    -
    ±0.075
    1 unidades
    12
    53
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    12
    110
    0.2 ~ 0.7
    ±0.090
    1 unidades
    15
    53
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    12
    110
    0.2 ~ 0.7
    ±0.090
    1 unidades
    16
    63
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    16
    123
    0.3 ~ 0.9
    ±0.090
    1 unidades
    18
    63
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    16
    123
    0.3 ~ 0.9
    ±0.090
    1 unidades
    20
    75
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    20
    141
    0.3 ~ 0.9
    ±0.105
    1 unidades
    25
    90
    4
    Flat Surface / Side Surface / Groove / Inclined Cutting
    25
    166
    0.3 ~ 0.9
    ±0.105
    1 unidades
    30
    90
    5
    Flat Surface / Side Surface / Inclined Cutting
    25
    166
    0.3 ~ 0.9
    ±0.105
    1 unidades
    Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)
    Data de envio standard
    56.01 €
    ( 66.65 € )
    5 dias úteis
    69.15 €
    ( 82.29 € )
    5 dias úteis
    95.87 €
    ( 114.09 € )
    5 dias úteis
    98.17 €
    ( 116.82 € )
    5 dias úteis
    101.29 €
    ( 120.54 € )
    5 dias úteis
    122.89 €
    ( 146.24 € )
    5 dias úteis
    138.77 €
    ( 165.14 € )
    5 dias úteis
    217.37 €
    ( 258.67 € )
    5 dias úteis
  • 1

    • Informações detalhadas

    Informações básicas

    [Features]
    -High-speed steel powder roughing type with long flute length expected to last long
    -Coating with excellent lubricity is effective for wet machining and machining at cutting speeds of 40 m/min or less
    -Can be reground. Please refer to the "Regrinding Service" page for information on application procedures, range of services, prices, etc.

    Especificações e preço

    Specifications

    TiCN Coated Powdered High-Speed Steel Roughing End Mill, Long, Center Cut:Related Image

    Model Number
    VPM-RFPL

    Outer
    Diameter D    		 Flute
    Length ℓ    		 Overall
    Length L    		 Under Neck
    Angle θ    		 Shank
    Diameter d    		 Corner
    Chamfering C    		 Number of
    Flutes Z
    10 45 95 — 10 — 4
    12 53 110 — 12 0.2 ~ 0.7 4
    15 53 110 — 12 0.2 ~ 0.7 4
    16 63 123 — 16 0.3 ~ 0.9 4
    18 63 123 — 16 0.3 ~ 0.9 4
    20 75 141 — 20 0.3 ~ 0.9 4
    25 90 166 — 25 0.3 ~ 0.9 4
    30 90 166 — 25 0.3 ~ 0.9 5



    Outer Diameter D Tolerance
    10 ±0.075
    12 ~ 18 ±0.090
    20 ~ 30 ±0.105


    For Cutting Conditions, Refer to >>Click here.
