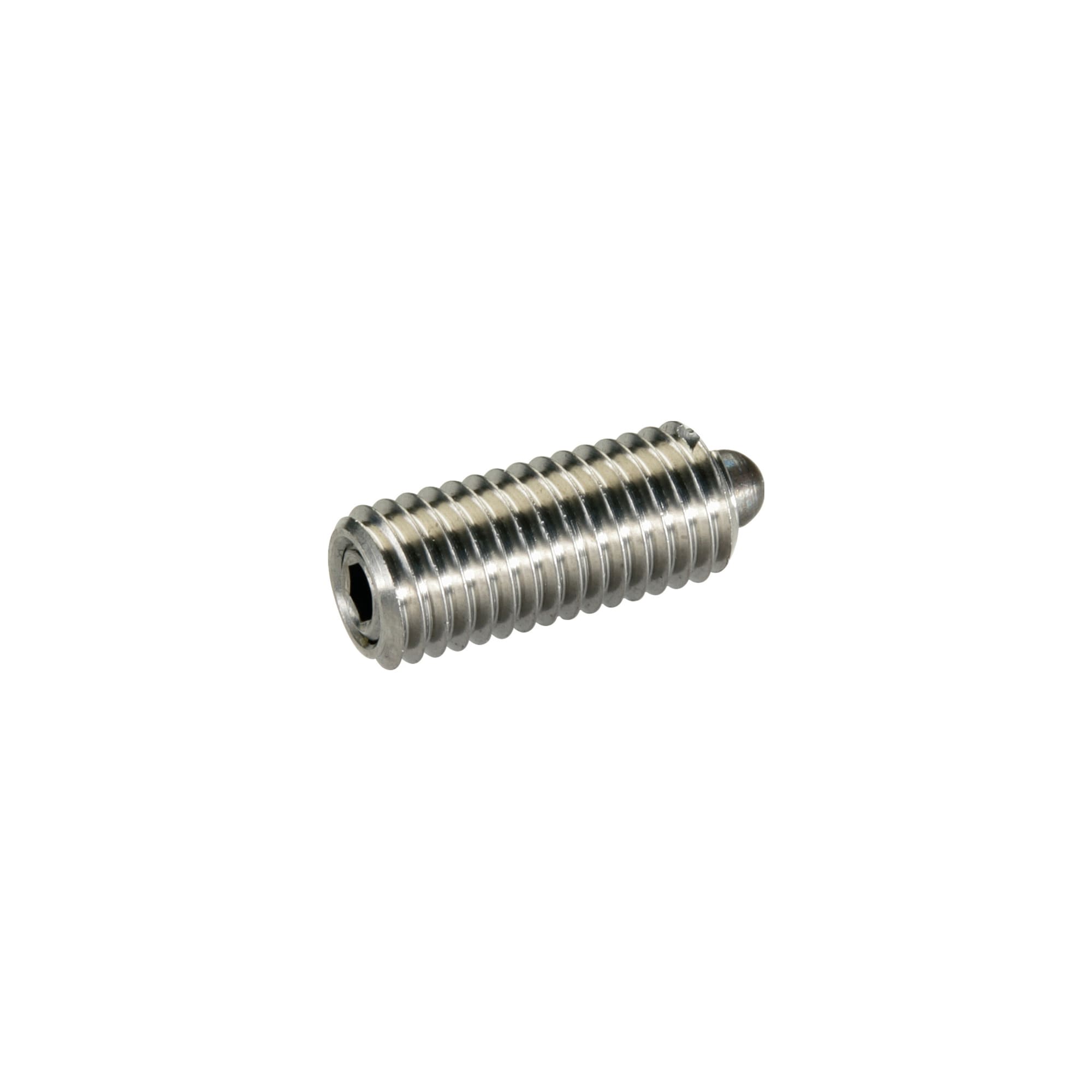

    Spring Plungers • with internal hexagon, EH 22060.

    Product Description

    Spring plungers can be used for locating or for applying pressure, as a detent or for ejection.

    Material

    Pin
    • Free cutting steel, hardened, blackened
    • Thermoplastic POM, white
    • Stainless steel 1.4305, nitrided
    Body
    • Free cutting steel, blackened
    • Stainless steel 1.4305
    Spring
    • Stainless steel

    Assembly

    Spring plungers can be mounted and removed by means of the slot or internal hexagon.
    Please use a special assembly tool for mounting with a slot (pin side).

    Characteristic

    Standard spring load: no marking
    Reinforced spring load: marked with two lines

    Standard spring load     Heavy spring load

    Notes

    Special types on request.
    Spring plungers are specially tested for spring range and forces.

    References

    Thread lock on request, please refer to appendix - Technical Data -

    Further products

    • Spring Plungers, with internal hexagon and seal

    Drawing

    Order Information

    DimensionsWSStrokeSpring load1)Operating temperature rangeWeightArt. No.
    d1d2lnt sF1F2min.max.
           ~~
    [mm][mm][mm][N][°C][g]
    free cutting steel, standard spring load
    M 31.0120.40.50.71.02.042500.422060.0003
    M 41.5150.60.61.31.54.5162500.922060.0004
    M 52.4181.20.81.52.36.0192501.722060.0005
    M 62.7201.30.92.02.56.0192502.822060.0006
    M 83.5221.51.42.53.010.0392505.722060.0008
    M104.0221.51.43.03.010.0392509.222060.0010
    M126.0282.72.04.04.012.05325016.022060.0012
    M167.5323.22.55.05.045.010025035.022060.0016
    M2010.0403.73.06.07.052.012525067.022060.0020
    M2412.0523.73.08.010.070.0170250129.022060.0024
    free cutting steel, heavy spring load
    M 52.4181.20.81.52.311.0402501.622060.0105
    M 62.7201.30.92.02.515.0432502.822060.0106
    M 83.5221.51.42.53.020.0752505.722060.0108
    M104.0221.51.43.03.020.0752509.122060.0110
    M126.0282.72.04.04.045.012025016.022060.0112
    M167.5323.22.55.05.064.016025026.022060.0116
    M2010.0403.73.06.07.075.019525067.022060.0120
    M2412.0523.73.08.010.075.0245250129.022060.0124
    free cutting steel, pin from thermoplastic, standard spring load
    M 41.5150.60.61.31.54.516-30500.922060.0204
    M 52.4181.20.81.52.36.019-30501.522060.0205
    M 62.7201.30.92.02.56.019-30502.322060.0206
    M 83.5221.51.42.53.010.039-30505.022060.0208
    M104.0221.51.43.03.010.039-30508.122060.0210
    M126.0282.72.04.04.012.053-305014.022060.0212
    M167.5323.22.55.05.045.0100-305031.022060.0216
    stainless steel, standard spring load
    M 31.0120.40.50.71.02.042500.922060.0403
    M 41.5150.60.61.31.54.5162500.922060.0404
    M 52.4181.20.81.52.36.0192501.722060.0405
    M 62.7201.30.92.02.56.0192502.822060.0406
    M 83.5221.51.42.53.010.0392504.622060.0408
    M104.0221.51.43.03.010.0392509.522060.0410
    M126.0282.72.04.04.012.05325016.022060.0412
    M167.5323.22.55.05.045.010025034.022060.0416
    M2010.0403.73.06.07.052.012525067.022060.0420
    stainless steel, pin from thermoplastic, standard spring load
    M 41.5150.60.61.31.54.516-30500.922060.0604
    M 52.4181.20.81.52.36.019-30501.622060.0605
    M 62.7201.30.92.02.56.019-30502.522060.0606
    M 83.5221.51.42.53.010.039-30505.122060.0608
    M104.0221.51.43.03.010.039-30508.522060.0610
    M126.0282.72.04.04.012.053-305014.022060.0612
    M167.5323.22.55.05.045.0100-305031.022060.0616
    1) statistical average value

    Accessories

     DimensionsWeightArt. No.
    d1bdl
    [mm][g]
    Assembly Tool for mounting via slot (pin sided)
    M 3502.35551722060.0903
    M 4503.00551822060.0904
    M 5504.00602122060.0905
    M 6604.70603022060.0906
    M 8606.45703922060.0908
    M10808.00806622060.0910
    M12809.80807222060.0912
    M1610013.5010514422060.0916
    M2010017.0011516222060.0920
    M2410019.9010025822070.0838
