Speed Controller With Quick-Connect Fitting, Push-Lock Type, Elbow/Universal Type AS Series(Lista de números de peça: página 3)

Clique na imagem para ver uma imagem ampliada

Página anterior

Página Seguinte

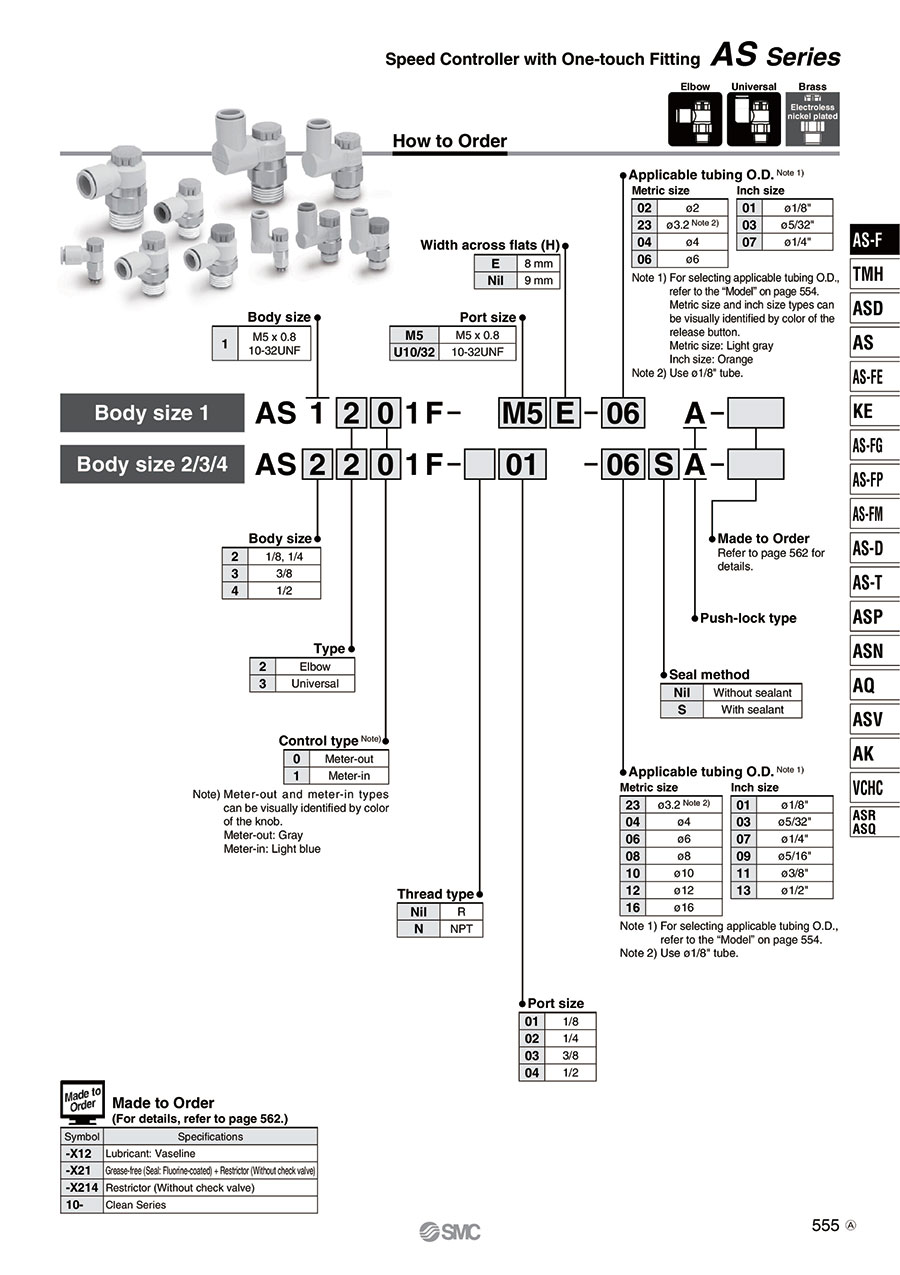

Catálogo

Cuidado

For specifications and details, please refer to the catalog.
Product images may be representative images. Refer to the catalog for details.

Número da peça:

Indefinido. 817 candidatos encontrados.

Informações do produto
Lista de números de peça
Informações detalhadas
Catálogo

Informações do produto

Speed Controller With One-Touch Fitting, Push-Lock Type, Elbow Type / Universal Type, AS Series Specifications

Elbow Type / Universal Type, Push-Lock Type external appearance

Easy one-push lock with no tools

Conventional product

Push lock type

Model

Model		Port size		Seal method	Applicable tubing outer diameter
Elbow type	Universal type				Metric size								Inch Size
Elbow type	Universal type				2^{Note 2)}	3.2	4	6	8	10	12	16	1/8 "	5/32 "	1/4 "	5/16 "	3/8 "	1/2 "
AS12□1F-M5□	AS13□1F-M5□	M5 × 0.8		Gasket seal	●^{Note 3)}	●	●	●	-	-	-	-	●	●	●	-	-	-
AS12□1F-U10/32□	AS13□1F-U10/32□	10-32UNF		Gasket seal	●^{Note 3)}	●	●	●	-	-	-	-	●	●	●	-	-	-
AS22□1F-□01	AS23□1F-□01	R NPT	1/8	Sealant^{Note 1)}	-	●	●	●	●	●^{Note 3)}	-	-	●	●	●	●	-	-
AS22□1F-□02	AS23□1F-□02		1/4		-	●^{Note 3)}	●	●	●	●	-	-	●^{Note 3)}	●	●	●	●	-
AS32□1F-□02	AS33□1F-□02		1/4		-	-	-	●	●	●	●	-	-	-	●	●	●	-
AS32□1F-□03	AS33□1F-□03		3/8		-	-	-	●	●	●	●	-	-	-	●	●	●	-
AS42□1F-□04	AS43□1F-□04		1/2		-	-	-	-	-	●	●	●^{Note 3)}	-	-	-	-	●	●

Note 1) Type without sealant can also be selected.
Note 2) Applicable tubing material for ø2 (diameter 2 mm) is polyurethane only.
Note 3) Universal type not available.

Specifications

Usable fluids	Air
Proof pressure	1.5 MPa
Max. operating pressure	1 MPa
Min. operating pressure	0.1 MPa
Ambient and fluid temperature	-5 to 60℃ (no freezing)
Applicable tubing material	Nylon, soft nylon, polyurethane^Note), FEP, PFA

Note) Use caution at the max. operating pressure when using soft nylon or polyurethane tubing.

Flow rate and sonic conductance

Model		AS12□1F-M5□ AS13□1F-M5□		AS22□1F-□01^{Note 3)} AS23□1F-□01^{Note 3)}			AS22□1F-□02 AS23□1F-□02				AS32□1F AS33□1F			AS42□1F AS43□1F
Tube outer diameter	Metric size	ø2	ø3.2 ø4 ø6	ø3.2	ø4	ø6 ø8 ø10	ø3.2	ø4	ø6	ø8 ø10	ø6	ø8	ø10 ø12	ø10	ø12 ø16
Tube outer diameter	Inch Size	-	ø1/8 " ø1/4 " ø5/32 "	ø1/8 "	ø5/32 "	ø1/4 " ø5/16	ø1/8 "	ø5/32 "	-	ø1/4 " ø5/16 " ø3/8 "	ø1/4 "	ø5/16 "	ø3/8 "	ø3/8 "	ø1/2 "
C value: Sonic conductance dm³/(s·bar)	Free flow	0.2	0.3	0.4	0.6	0.6	0.7	1.0	1.3	1.5	1.6	1.7	2.5	4.4	4.8
C value: Sonic conductance dm³/(s·bar)	Controlled flow	0.2	0.3	0.4	0.7	0.8	0.6	0.9	1.3		2.1	2.4	3.3	4.4	4.9
b values: Critical pressure ratio	Free flow	0.3	0.4	0.2		0.3	0.3		0.4		0.4		0.3	0.3
b values: Critical pressure ratio	Controlled flow	0.2		0.2		0.3	0.3				0.3			0.3

Note 1) 10-32UNF has the same specification as M5.
Note 2) C and b values are for controlled flow with the needle fully open and free flow with the needle fully closed.
Note 3) The same specifications also apply to the AS-FG Series (stainless steel specification).

Needle Valve: Flow Rate Characteristics

AS1201F-M5□/AS1211F-M5□/AS1301F-M5□/AS1311F-M5□

Note) -U10/32 has the same specification as M5.

AS2201F-01/AS2211F-01/AS2301F-01/AS2311F-01

AS2201F-02／AS2211F-02／AS2301F-02／AS2311F-02

AS3201F／AS3211F／AS3301F／AS3311F

AS4201F／AS4211F／AS4301F／AS4311F

Note) The numbers above the flow rate characteristics curves in the charts show the applicable tubing outside diameter as defined by the product number.
* See the manufacturer's catalog for information other than the above.

Lista de números de peça

Número de itens

...

Seguinte

Número da peça

Main Body Shape

Control Direction

Usage Environment/Application

Lock Nut Type

Connection Dia.

Types of Screw

Applicable Tube O.D. mm

(mm)

Applicable Tube O.D. inch size

(inch)

Body Size

Sealing Method

Hex Size H (H1)

(mm)

Made-to-order specifications

Quantidade mínima de encomenda

[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	3.2	-	1	Gasket Seal	9	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	-	1/8	1	Gasket Seal	8	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	2	-	1	Gasket Seal	8	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	-	5/32	1	Gasket Seal	8	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	4	-	1	Gasket Seal	8	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	6	-	1	Gasket Seal	8	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	-	1/4	1	Gasket Seal	8	None	1 unidades
[Elbow] Elbow	Meter-In	Standard	-	10-32	UNF	3.2	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	-	1/8	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	-	5/32	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	4	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	[Slide Lock Lever] Push Lock Type	-	-	-	-	1	-	-	Lubrication-free (seal of fluorine coating) + throttle valve (Without check valve)	1 unidades
Universal	Meter-Out	Standard	[Slide Lock Lever] Push Lock Type	-	-	-	-	1	-	-	Throttle valve (no check valve)	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	6	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	[Slide Lock Lever] Push Lock Type	-	-	-	-	1	-	-	Lubrication-free (seal of fluorine coating) + throttle valve (Without check valve)	1 unidades
Universal	Meter-Out	Standard	[Slide Lock Lever] Push Lock Type	-	-	-	-	1	-	-	Throttle valve (no check valve)	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	-	1/4	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	3.2	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	-	1/8	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	-	5/32	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	4	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	[Slide Lock Lever] Push Lock Type	-	-	-	-	1	-	-	Lubrication-free (seal of fluorine coating) + throttle valve (Without check valve)	1 unidades
Universal	Meter-Out	Standard	[Slide Lock Lever] Push Lock Type	-	-	-	-	1	-	-	Throttle valve (no check valve)	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	6	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	-	1/4	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	5 × 0.8	M	3.2	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	-	1/8	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	-	5/32	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	4	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	6	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	-	1/4	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	3.2	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	-	1/8	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	-	5/32	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	4	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	6	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	-	1/4	1	Gasket Seal	8	None	1 unidades
Universal	Meter-Out	Standard	-	10-32	UNF	3.2	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	-	1/8	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	-	5/32	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	4	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	6	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	-	1/4	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	3.2	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	-	1/8	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	-	5/32	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	4	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	6	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	-	1/4	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	5 × 0.8	M	3.2	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	-	1/8	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	-	5/32	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	4	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	6	-	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	-	1/4	1	Gasket Seal	9	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	-	1/8	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	-	5/32	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	4	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	6	-	1	Gasket Seal	8	None	1 unidades
Universal	Meter-In	Standard	-	10-32	UNF	-	1/4	1	Gasket Seal	8	None	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

8.97 € ( 10.67 € )	11 dias úteis
10.85 € ( 12.91 € )	6 dias úteis
11.95 € ( 14.22 € )	6 dias úteis
10.49 € ( 12.48 € )	6 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
10.49 € ( 12.48 € )	6 dias úteis
10.85 € ( 12.91 € )	6 dias úteis
8.97 € ( 10.67 € )	18 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	Item em stock: 1 dia útilDisponível para envio no próprio dia
12.13 € ( 14.43 € )	11 dias úteis
9.73 € ( 11.58 € )	11 dias úteis
8.66 € 4.33 € ( 5.15 € )	4 dias úteis
12.13 € ( 14.43 € )	11 dias úteis
9.73 € ( 11.58 € )	11 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.97 € ( 10.67 € )	4 dias úteis
8.97 € ( 10.67 € )	18 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	45 dias úteis
12.13 € ( 14.43 € )	23 dias úteis
9.73 € ( 11.58 € )	11 dias úteis
8.66 € 4.33 € ( 5.15 € )	4 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.97 € ( 10.67 € )	11 dias úteis
8.97 € ( 10.67 € )	29 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
10.49 € ( 12.48 € )	6 dias úteis
8.66 € ( 10.31 € )	29 dias úteis
10.86 € ( 12.92 € )	6 dias úteis
8.97 € ( 10.67 € )	18 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
8.66 € ( 10.31 € )	23 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
8.97 € ( 10.67 € )	18 dias úteis
10.86 € ( 12.92 € )	6 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	4 dias úteis
8.66 € 4.33 € ( 5.15 € )	4 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.97 € ( 10.67 € )	11 dias úteis
8.97 € ( 10.67 € )	18 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
8.97 € ( 10.67 € )	11 dias úteis
10.86 € ( 12.92 € )	6 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
8.66 € ( 10.31 € )	11 dias úteis
10.49 € ( 12.48 € )	6 dias úteis
10.49 € ( 12.48 € )	6 dias úteis
8.97 € ( 10.67 € )	18 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
8.66 € ( 10.31 € )	18 dias úteis
8.66 € ( 10.31 € )	29 dias úteis
10.49 € ( 12.48 € )	6 dias úteis

...

Seguinte

Informações detalhadas

Informações básicas

Informações básicas

Speed controller with single-action fitting.
[Features]
・ Push-lock type.
・ Improved needle-lock operation.
・ Larger handle.
・ Improved tube insertion and removal.
・ Max. 30% (8 N) reduction in insertion force.
・ Max. 20% (5 N) reduction in removal force. (Tube pulling-out strength is ensured to be equivalent to the current model.)
・ Electroless nickel plating specification as standard.
・ Allows 360° piping swivel (universal type).

Cuidado

For specifications and details, please refer to the catalog.
Product images may be representative images. Refer to the catalog for details.

Catálogo

Catálogo (visualização de 2 páginas)
