CXSJ, Dual Rod Cylinder, Compact Type(Lista de números de peça: página 7)

Condições de filtragem

Estoque
Mostrar apenas artigos em stock

Cylinder (Tube) Inner Diameter(Ø)

Stroke(mm)

Environment, Applications

Operating Pressure(MPa)

Port thread type

Auto Switch

Lead Wire Length(m)

Number of Switches

Type of Shaft Bearing

Custom-made Specifications

Type

Connector type

None

Type

Cylinder

Type

CAD

Dias de envio estimados

Tudo
Dentro de 4 dias úteis
Dentro de 5 dias úteis
Dentro de 6 dias úteis
Dentro de 11 dias úteis
Dentro de 17 dias úteis
Dentro de 19 dias úteis
Dentro de 20 dias úteis
Dentro de 21 dias úteis
Dentro de 23 dias úteis
Dentro de 24 dias úteis

SMC

CXSJ, Dual Rod Cylinder, Compact Type(Lista de números de peça: página 7)

Clique na imagem para ver uma imagem ampliada

Catálogo

Cuidado

See catalog for specification details.
Product pictures are representations. CAD data is not supported for some model numbers.

Número da peça:

Indefinido. 443 candidatos encontrados.

Lista de números de peça
Informações detalhadas
Catálogo

Lista de números de peça

Número de itens

...

Seguinte

Número da peça

Encomenda suspensa

Encomenda suspensa

Encomenda suspensa

Cylinder (Tube) Inner Diameter

(Ø)

Stroke

(mm)

Environment, Applications

Operating Pressure

(MPa)

Port thread type

Auto Switch

Lead Wire Length

(m)

Number of Switches

Type of Shaft Bearing

Custom-made Specifications

Type

Connector type

Type

Quantidade mínima de encomenda

15	100	Standard	0.1 to 0.7	M Screw	M9PW	0.5 (M8 3-pin plug connector)	2	Slide bearing	None	Standard piping	-	-	1 unidades
15	100	Standard / Heat Resistant	0.1 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
15	100	Low Speed	0.1 to 0.7	M Screw	Without switch	-	-	Slide bearing	Low-speed cylinder (5 to 50 mm/s)	Standard piping	-	-	1 unidades
15	100	Standard	0.1 to 0.7	M Screw	Without switch	-	-	Slide bearing	Fluororubber seal	Standard piping	None	Cylinder	1 unidades
15	120	Standard	0.1 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
15	125	Standard	0.1 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
15	150	Standard	0.1 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
20	10	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	10	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
20	10	Low Speed	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Low-speed cylinder (5 to 50 mm/s)	Standard piping	-	-	1 unidades
20	10	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
20	20	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	20	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
20	20	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
20	20	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Fluororubber seal	Standard piping	-	-	1 unidades
20	25	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Intermediate stroke (spacer compatible)	Standard piping	-	-	1 unidades
20	30	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	30	Standard	0.05 to 0.7	M Screw	A93	3	2	Slide bearing	None	Standard piping	-	-	1 unidades
20	30	Standard	0.05 to 0.7	M Screw	M9P	3	2	Slide bearing	None	Standard piping	-	-	1 unidades
20	30	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
20	30	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
20	30	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Fluororubber seal	Standard piping	-	-	1 unidades
20	35	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Intermediate stroke (spacer compatible)	Standard piping	-	-	1 unidades
20	40	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	40	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
20	50	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	50	Standard	0.05 to 0.7	M Screw	A93	0.5	2	Slide bearing	None	Standard piping	-	-	1 unidades
20	50	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
20	50	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
20	75	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	75	Standard	0.05 to 0.7	M Screw	M9P	0.5 (M8 3-pin plug connector)	2	Slide bearing	None	Standard piping	-	-	1 unidades
20	100	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
20	100	Standard	0.05 to 0.7	M Screw	M9BW	3	2	Slide bearing	None	Standard piping	-	-	1 unidades
20	100	Low Speed	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Low-speed cylinder (5 to 50 mm/s)	Standard piping	-	-	1 unidades
20	120	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
20	125	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
20	175	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
20	200	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Long stroke type	Standard piping	-	-	1 unidades
25	10	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
25	10	Standard	0.05 to 0.7	M Screw	M9P	5	2	Slide bearing	None	Standard piping	-	-	1 unidades
25	10	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
25	15	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Intermediate stroke (spacer compatible)	Standard piping	-	-	1 unidades
25	20	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
25	25	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Intermediate stroke (spacer compatible)	Standard piping	-	-	1 unidades
25	30	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
25	30	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
25	40	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
25	40	Standard / Heat Resistant	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades
25	50	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
25	50	Standard	0.05 to 0.7	M Screw	M9B	3	2	Slide bearing	None	Standard piping	-	-	1 unidades
25	50	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
25	75	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
25	75	Standard	0.05 to 0.7	M Screw	A93	0.5	2	Slide bearing	None	Standard piping	-	-	1 unidades
25	75	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	Material: stainless steel	Standard piping	-	-	1 unidades
25	100	Standard	0.05 to 0.7	M Screw	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
32	10	Standard	0.05 to 0.7	Rc 1/8	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
32	10	Low Speed	0.05 to 0.7	Rc 1/8	Without switch	-	-	Slide bearing	Low-speed cylinder (5 to 50 mm/s)	Standard piping	-	-	1 unidades
32	20	Standard	0.05 to 0.7	Rc 1/8	Without switch	-	-	Slide bearing	None	Standard piping	-	-	1 unidades
32	20	Standard	0.05 to 0.7	Rc 1/8	M9B	0.5	2	Slide bearing	None	Standard piping	-	-	1 unidades
32	20	Standard / Heat Resistant	0.05 to 0.7	Rc 1/8	Without switch	-	-	Slide bearing	Heat-resistant cylinder (-10 to 150°C)	Standard piping	-	-	1 unidades

Preço unitário (excluindo IVA)(Preço unitário incluindo IVA)	Data de envio standard

455.03 € ( 541.49 € )	19 dias úteis
493.48 € ( 587.24 € )	29 dias úteis
379.84 € ( 452.01 € )	28 dias úteis
402.44 € ( 478.90 € )	11 dias úteis
425.29 € ( 506.10 € )	33 dias úteis
425.60 € ( 506.46 € )	43 dias úteis
470.29 € ( 559.65 € )	33 dias úteis
249.61 € ( 297.04 € )	4 dias úteis
375.10 € ( 446.37 € )	23 dias úteis
256.77 € ( 305.56 € )	28 dias úteis
276.81 € ( 329.40 € )	28 dias úteis
264.15 € ( 314.34 € )	11 dias úteis
389.68 € ( 463.72 € )	28 dias úteis
291.40 € ( 346.77 € )	28 dias úteis
298.65 € ( 355.39 € )	62 dias úteis
278.55 € ( 331.47 € )	28 dias úteis
278.76 € ( 331.72 € )	4 dias úteis
140.97 € ( 167.75 € )	6 dias úteis
353.56 € ( 420.74 € )	26 dias úteis
404.21 € ( 481.01 € )	23 dias úteis
305.94 € ( 364.07 € )	33 dias úteis
313.18 € ( 372.68 € )	28 dias úteis
293.15 € ( 348.85 € )	33 dias úteis
293.27 € ( 348.99 € )	39 dias úteis
320.53 € ( 381.43 € )	37 dias úteis
307.87 € ( 366.37 € )	4 dias úteis
350.94 € ( 417.62 € )	33 dias úteis
433.35 € ( 515.69 € )	28 dias úteis
335.05 € ( 398.71 € )	28 dias úteis
344.26 € ( 409.67 € )	4 dias úteis
428.52 € ( 509.94 € )	19 dias úteis
380.73 € ( 453.07 € )	4 dias úteis
459.48 € ( 546.78 € )	33 dias úteis
394.39 € ( 469.32 € )	11 dias úteis
417.06 € ( 496.30 € )	43 dias úteis
439.03 € ( 522.45 € )	24 dias úteis
548.27 € ( 652.44 € )	43 dias úteis
562.87 € ( 669.82 € )	33 dias úteis
276.92 € ( 329.53 € )	39 dias úteis
359.47 € ( 427.77 € )	11 dias úteis
402.39 € ( 478.84 € )	28 dias úteis
291.32 € ( 346.67 € )	33 dias úteis
291.47 € ( 346.85 € )	39 dias úteis
305.87 € ( 363.99 € )	28 dias úteis
305.98 € ( 364.12 € )	39 dias úteis
431.52 € ( 513.51 € )	19 dias úteis
320.60 € ( 381.51 € )	29 dias úteis
446.11 € ( 530.87 € )	19 dias úteis
335.18 € ( 398.86 € )	11 dias úteis
408.02 € ( 485.54 € )	17 dias úteis
365.92 € ( 435.44 € )	28 dias úteis
371.56 € ( 442.16 € )	39 dias úteis
414.71 € ( 493.50 € )	33 dias úteis
402.32 € ( 478.76 € )	28 dias úteis
408.02 € ( 485.54 € )	11 dias úteis
327.85 € ( 390.14 € )	11 dias úteis
336.85 € ( 400.85 € )	28 dias úteis
344.26 € ( 409.67 € )	39 dias úteis
409.34 € ( 487.11 € )	24 dias úteis
529.81 € ( 630.47 € )	19 dias úteis

...

Seguinte

Informações detalhadas

Informações básicas

Informações básicas

Dual-Rod Cylinder, Compact Type CXSJ Series that can be mounted from 3 directions.
[Features]
· Dual-rod cylinder with guide function that is suitable for pick and place applications, etc.
· Ball bushing bearings and slide bearings are standard for all series.
· Workpieces can be mounted on 3 surfaces.
· Twice the thrust, non-rotating accuracy of ±0.1°.
· Adjustable stroke range of 0 to -5 mm.

Cuidado

See catalog for specification details.
Product pictures are representations. CAD data is not supported for some model numbers.

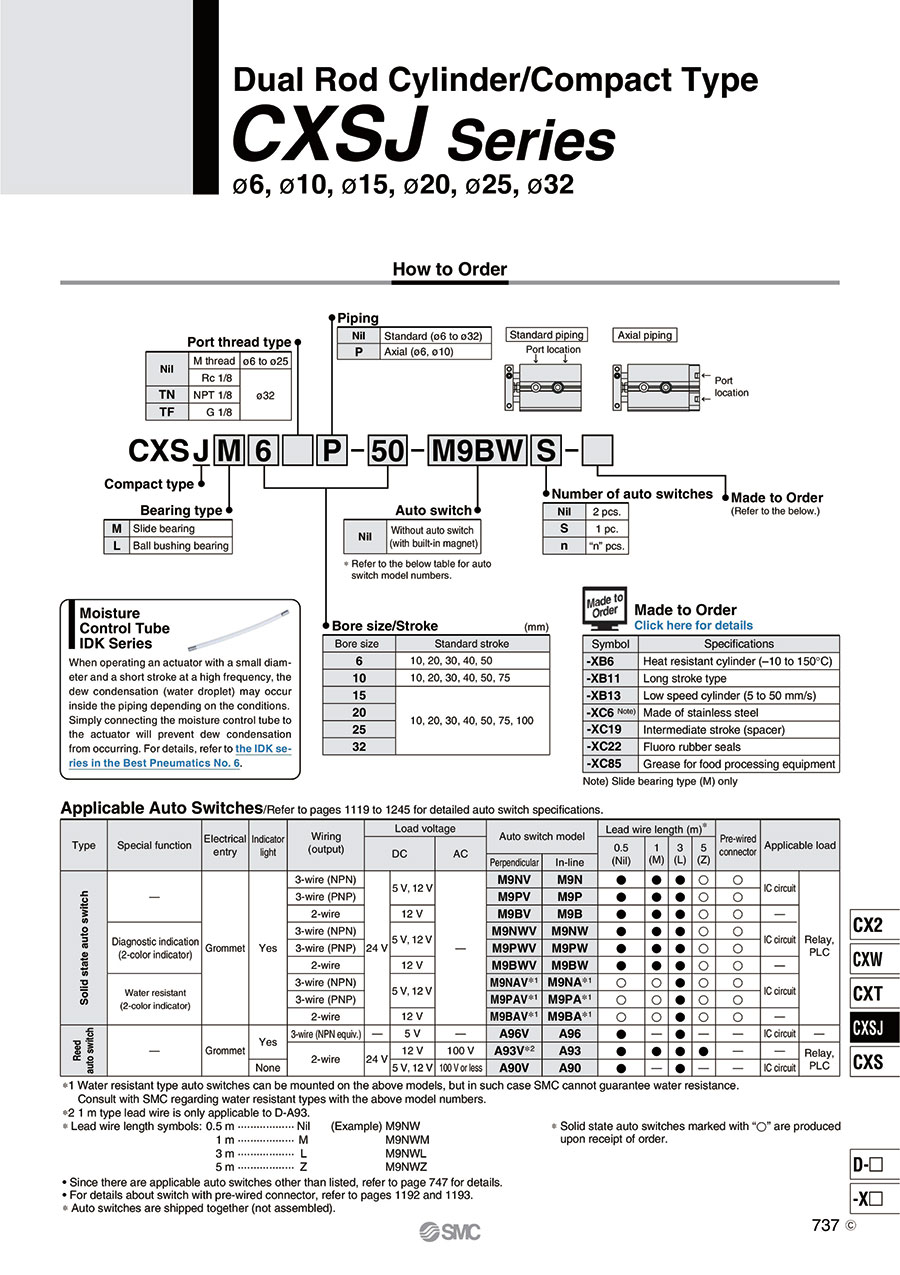

Catálogo
