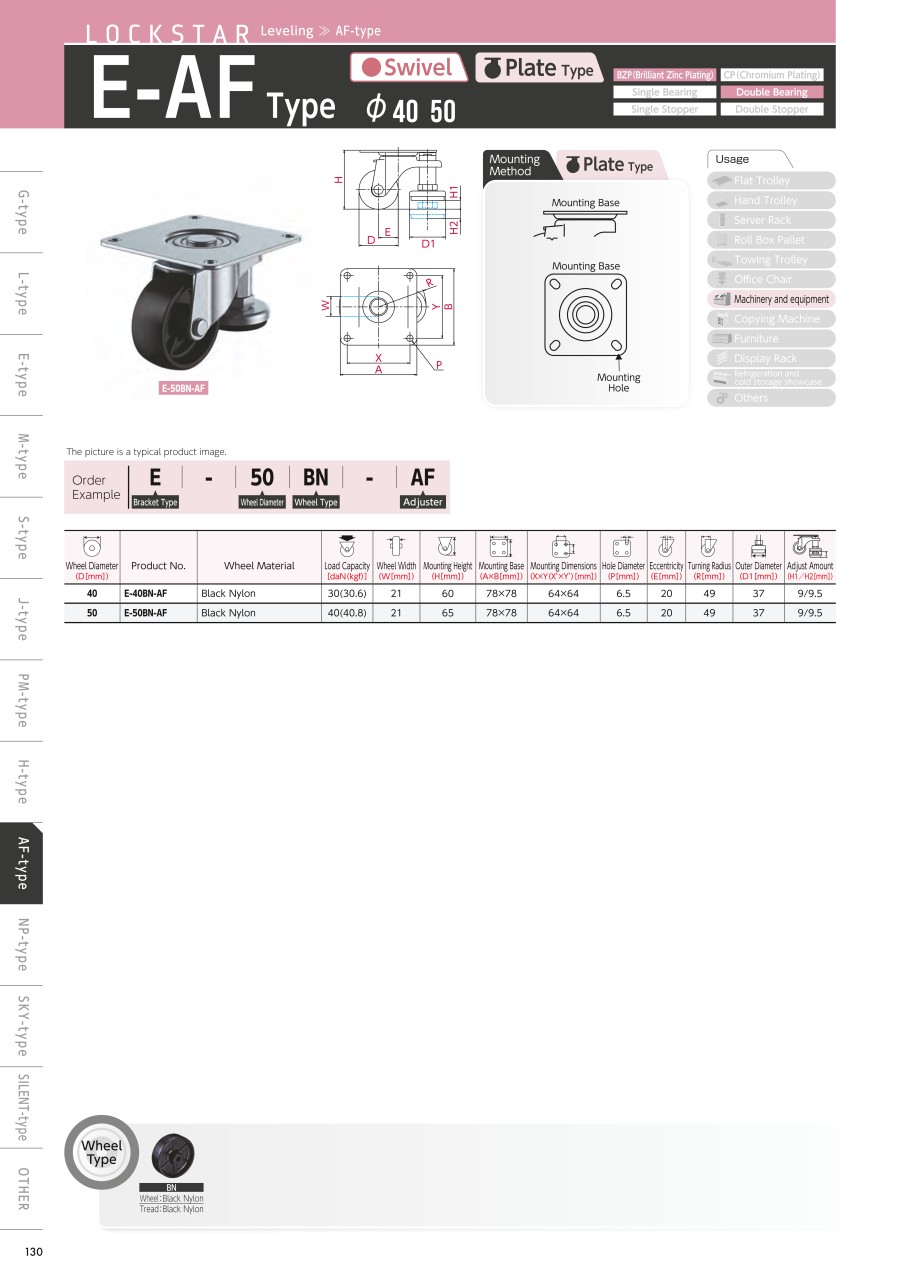

Adjuster With Foot Series E-AF Model
Castor with platform trolley fixing function for light duty used for transporting light machinery, etc.
Part Number
Once your search is narrowed to one product,
the corresponding part number is displayed here.
E-50BN-AF
- Product data
- CAD data not available
Basic information
| Caster Type | Plate Type Universal / With Adjuster | Stopper | NA | Wheel Material | Nylon |
|---|---|---|---|---|---|
| Wheel Characteristics | Abrasion Resistance / Gasoline Resistance (Light Oil included) / Oil Resistance / Chemical Resistance | Fitting Material | Steel | Mounting Hole Type | Round Hole |
| Mounting Hole Pitch, Long Length Direction L1(mm) | 64 | Mounting Hole Pitch, Short Length Direction W1(mm) | 64 | Plate Length(mm) | 78 |
| Plate Width(mm) | 78 | Wheel Width(mm) | 21 | Application | Factory facilities |
| Load Category | Light Load |
This page is Adjuster With Foot Series E-AF Model, part number E-50BN-AF.
You can find the detail information about specifications and dimensions on part number E-50BN-AF.
- The specifications and dimensions of some parts may not be fully covered. For exact details, refer to manufacturer catalogs .
Variation of this product
| Part Number |
|---|
| E-40BN-AF |
| Part Number | Standard Unit Price | Minimum order quantity | Volume Discount | Standard Shipping Days ? | Mounting Height H (mm) | Load Range (daN) | Allowable Load (daN) | Wheel Dia. D (mm) |
|---|---|---|---|---|---|---|---|---|
16.71 € | 1 | 7 Days | 60 | ~35.00 | 30 | 40 |
